Type
DC Fast Charger
3.3kW
7.5kW
7.5kW Lite
Trusted by 24000+ EV Owners across India
CE & TUV certified chargers
Doorstep Service & Support
7-Day Return, 5-year Warranty
Product description

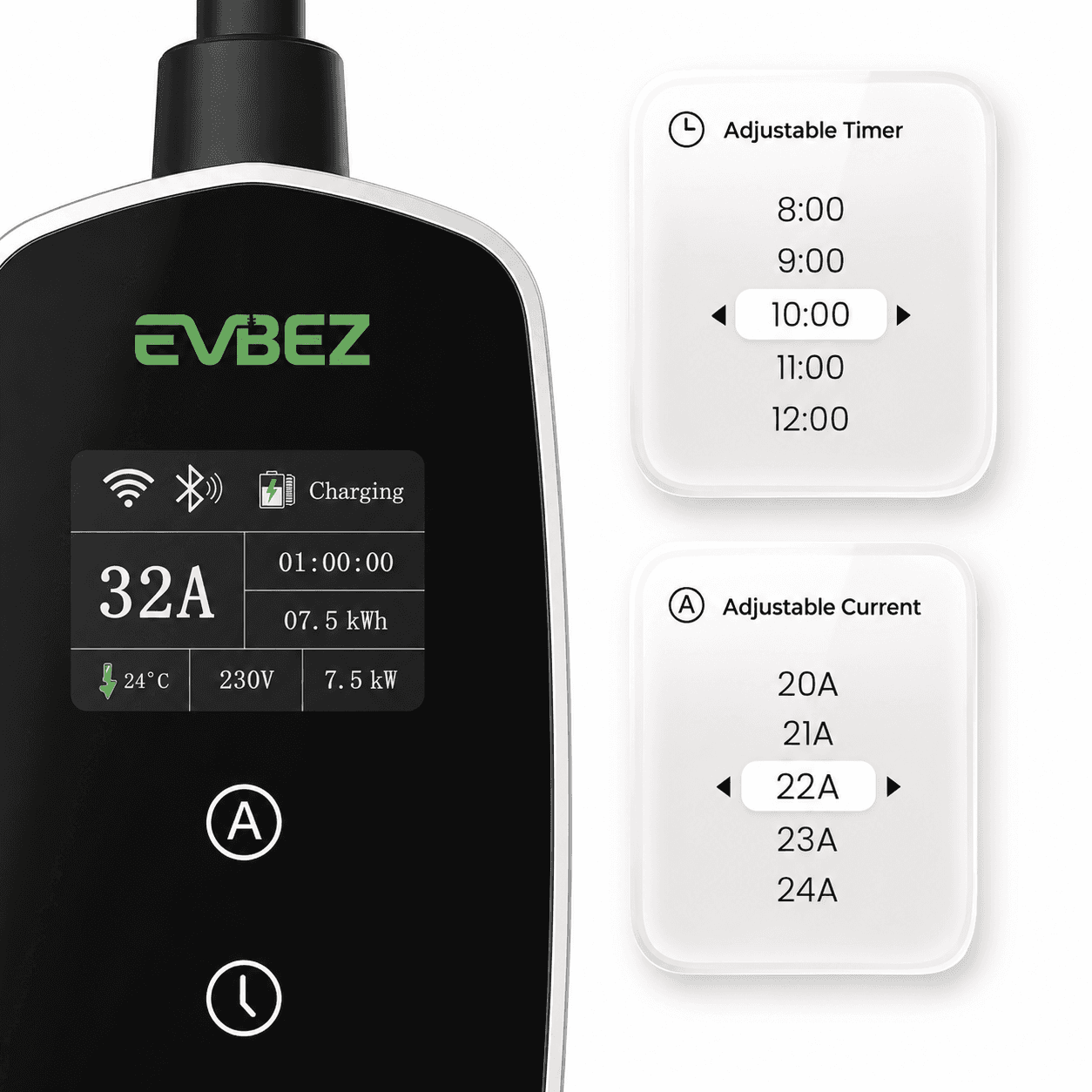

Dash 2.0 is a 7.5kW compact, and efficient portable EV charging solution. With a powerful output of up to 7.5kW, Dash 2.0 ensures a quick and reliable charge for your electric vehicle, wherever you are. Designed for convenience and ease of use, this lightweight charger is perfect for home, office, or on-the-go use. Dash features switchable current settings, allowing you to optimize the charging performance for your vehicle and manage your power load. Compatible with a wide range of EVs, Dash2.0 is equipped with advanced safety features to ensure a secure and dependable charging experience.
Specifications & Installation
Output: Up to 7.5 kW
Current Options: Adjustable from 6A to 32A
Input Voltage: 230V, single phase
Total Cable Length (from plug to gun): 5 meters
Connector Type: Type 2 (IEC 62196-2)
Control: Zevpoint Home App (no on-unit display)
Dimensions: 297 x 54 x 106 mm
Weight: 3.5 kg
Safety Features: Auto cut-off, overload protection, short circuit protection, leakage protection, earthing protection, over-temperature protection, water and dust resistance (IP66)
In the Box: Dash Lite charger, 32A CEE industrial socket, carry bag, wall bracket and instruction manual
Warranty: 5 years on cables and enclosure, 2 years on all other components
Install Guide
Power Socket: A dedicated 32A power socket with adequate connected load is required for optimal performance (included with the packaging)
Wiring: Use a minimum of 6 square mm, 3-core copper cable to handle the electrical load safely. In hot environments, consider using a 10 square mm copper cable.
Earthing: Ensure the power socket is properly earthed to prevent electrical hazards.
Circuit Breaker: Install a 40A double/two-pole MCB (Miniature Circuit Breaker) and a Surge Protection Device (SPD) to protect against power surges and electrical faults.
Voltage Stabilizer: If facing frequent input power fluctuations, use an appropriate voltage stabilizer.
