Power Output

Charging Power:7.4 kW (1-ph), 11kW (3-ph), 22 kW (3-ph) AC Output: 90 - 270 Vac (1-ph) to 160 - 460 Vac (3-ph) Connection point: IEC 62196-2 Type-2 Mode of Charging: Mode-3 Max. AC Output Current: 32 A (7.4 kW), 16 A (11 kW), 32A (22 kW)

Mains Input

Input Voltage (nominal): 220/230/240 VAC (nom) or 380/400/415 Vac (L – L) Input Voltage Range: 90 - 270 Vac (1-ph) to 160 - 460 Vac (3-ph) Network Connection: TN-S AC Wiring: 1 Phase / L1, N, PE or 3-phase / L1, L2, L3, N, PE 3-ph charger use on 1-ph supply: Yes, 22 kW model derated to 7.4 kW (11 kW to 3.6 kW) Input Frequency (nominal): 50 / 60 Hz Input Frequency Range: 45 - 65 Hz Leakage Current: < 3.5 mA Standby Power @ nom. voltage: < 10 W

Protection and Safety

Di-electric strength test: Impulse Di-electric Withstand (1.2/50us): Insulated Test between isolated terminals: R>100Mohm Over Voltage Category: III Residual Current: Integrated 6mA DC (to IEC 62955) + 30mA AC, use Type A RCD externally Others: Over Current, Under/Over Voltage, Over Temperature, Gnd-N Voltage, Residual Current

User Interface and Comms

Charge Option / User Authentication: Auto start, RFID/NFC MIFARE ISO/IEC14443 A/B, via Spin Control mobile app. or 3rd party CMS Connectivity Options: Bluetooth, Wi-Fi or 4G modem Smart Home Integration: Amazon Alexa ; Google Home Visual Indication (LED): Presence of Supply, State of Charging, Error Communication EVSE and CMS server: OCPP V 1.6 J (JSON) Energy Metering: Integrated (MID compliant option)

Load Management

Manual Max Load Limiting: 1A steps (via Spin Control app) Dynamic Management: Load Curtailment; Solar Export Control (SpinNet option) Load sharing: Up to 20 chargers (SpinNet option)

Mechanical

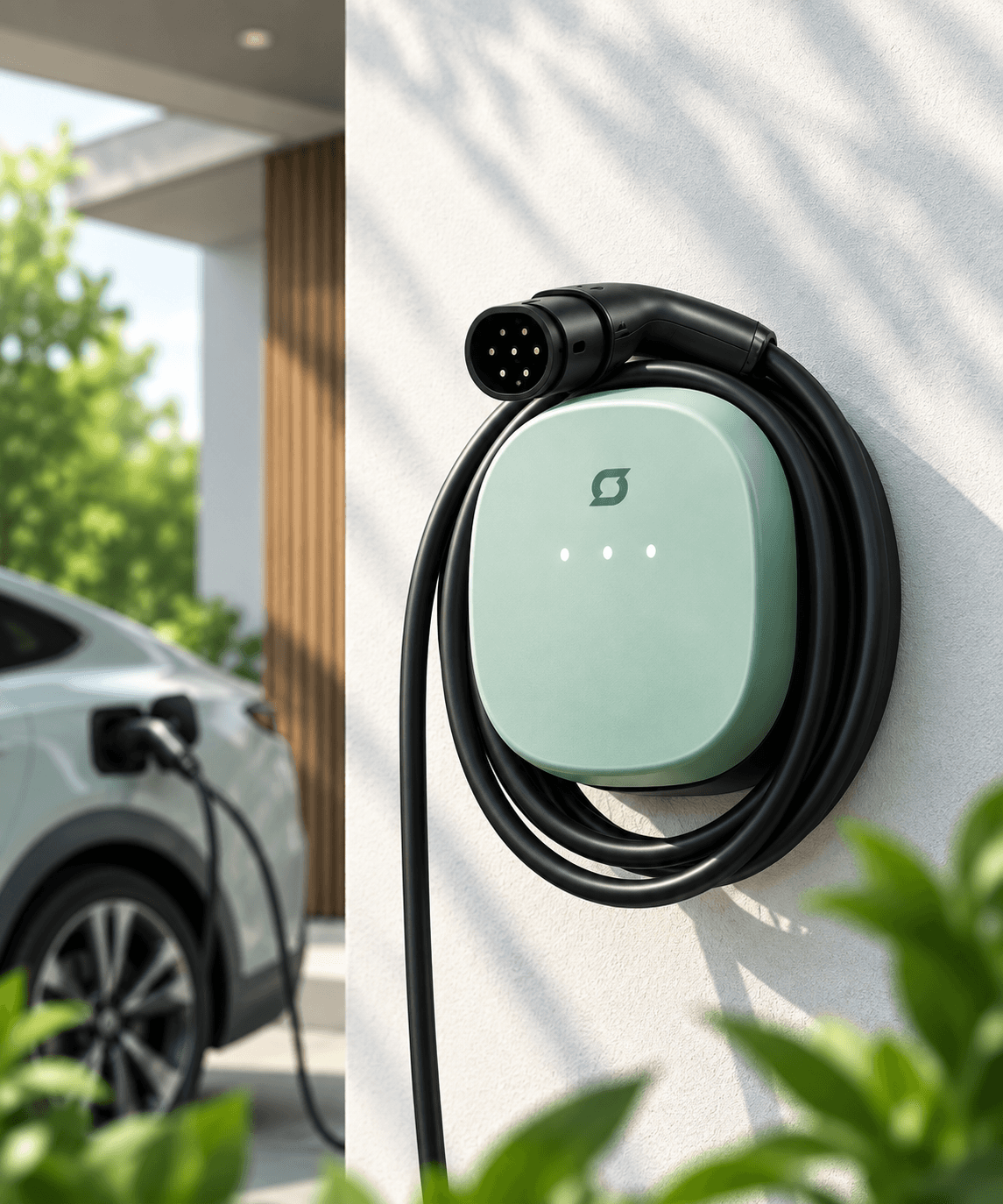

Ingress Protection: IP 66 (Outdoor environment) Impact Resistance: IK10 acc. IEC 62262 Dimension (H*W*D): 246 * 246 * 102 mm Weight: 4 kg approx. (inc cable) Charging Cable Length: Tethered 5 meters, other lengths optional Cable Storage: Wrap around charger body or optional separate prop Material: Polycarbonate + ABS (UL94-V0) Mounting: Pedestal Stand or Wall Cooling: Natural Air

Environmental

Operating Temperature: -25°C to 55°C (full power) Storage Temperature: -40°C to 75°C Altitude: 2,000 meters (de-rating above 2,000 meters) Humidity (Non-Condensing): 5 % to 95 %

Standards / Certification

Safety: IEC 61851-1 Other: CE; IEC 61851-21-2; IEC 62196-1; IEC 62196-2; IEC 61000; ARAI (AIS 138 Part 2)
